Sewage tank: circular section, 1420mm x 3000mm (diameter x straight length); Medium inside the sewage tank: suspended sewage with the density of 800 kg / m3; Sewage tank volume: 47m3; Clean water tank: symmetrical polygonal section, 2800mm x 790mm x 1052mm (L x W x H); Medium inside the clean water tank: water with the density of 1000 kg / m3; Clean water tank volume: 3.1m3; The sewage tank and the clean water tank are separated from each other, and the two tanks cannot be fully loaded at the same time; Wheelbase: 4200 mm; Side protection: Q235B, bolt connection; Rear protection: Q235B, bolt connection, section size: 50mmx135mm, ground clearance:385 mm. Front spoiler, front fog lamps, side window trim panels of sleeper cap, exhaust pipe front overhang, and ABS are optional for installation; ABS model: 3631010-C2000,4460046440; ABS manufacturer: Dongke Knorr Commercial Vehicle Brake Systems (Shiyan) Co., Ltd., WABCO Vehicle Control Systems (China) Co., Ltd.; Equipped with a satellite positioning driving recorder.
Specifications

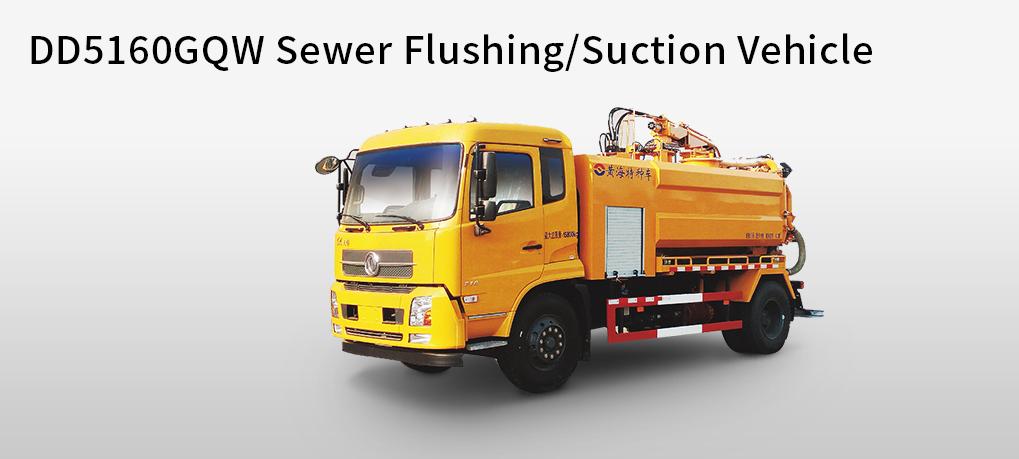

| Name | DD5160GQW Sewer Flushing/Suction Vehicle |
| Size: L?x?W?x?H（mm） | 7745x2460x3480 |
| Cargo compartment dimension(mm) | - |
| G.V.W.(kg)（kg） | 15800 |
| Curb mass(kg) | 10505 |
| Rated loadkg) | 5100 |
| Wheel base（mm） | 3800,4200,4500,4700,5000 |
| Number of axles | 2 |
| ABS | have |
| Approaching angle/ departure angle | 20/10 |
| Front?&?rear?overhang(mm) | 1430/2115 |
| Maximum?speed（km/h） | 80 |
| Tire?number | 6 |
| 彈簧片數(shù) | 7/9+6,8/10+8 |
| Front track | 1880,1900,1920 |
| Rear track | 1800,1860,1820 |
| Oil consumption rate(L/100Km) | - |
| Emission standard | - |
