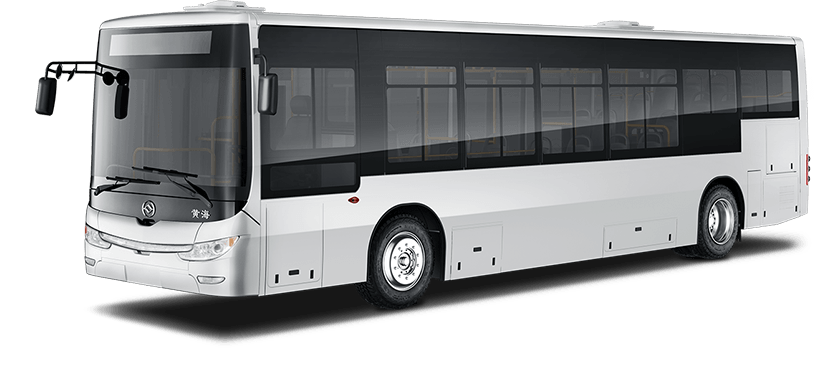

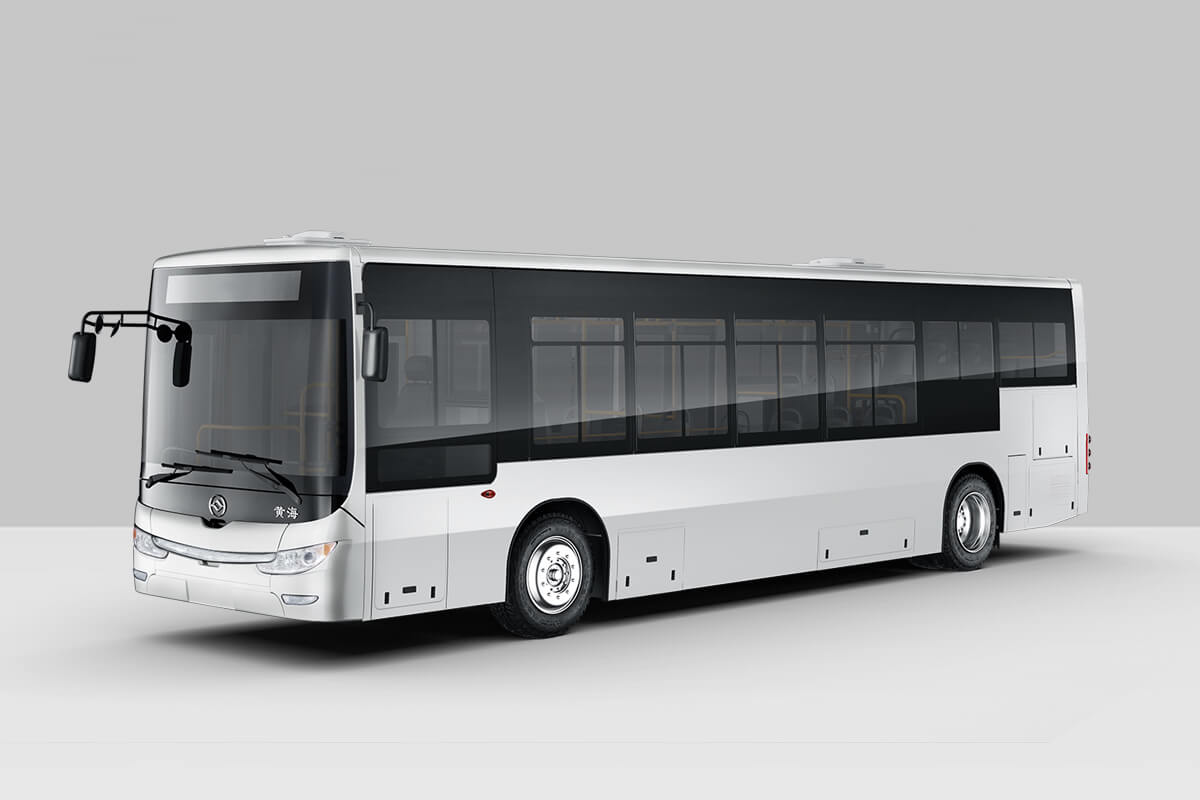

6109EVEV5
Drive Devices
Jing-Jin TZ460XSE02
Battery level
138.24kWh（576V 240Ah）
6109EVEV7
Drive Devices
lvkon
Battery level
202.9kWh
6109EVEV9
Drive Devices
lvkon
Battery level
267kWh
6109EVEV10
Drive Devices
Auto Ekontrol
Battery level
303.6/267kWh
6109EVEV13
Drive Devices
lvkon TZ410XS-LKM2504
Battery level
255.4/281.9kWh
6109EVEV14
Drive Devices
lvkon TZ410XS-LKM2504
Battery level
303.4/315kWh
-
Specificationsclose
Dimensions(length/width/height)(mm) 10490x2482x3100/3250 Model of the driving motor Jing-Jin TZ460XSE02 Power rating(kW/r/min) 135 Maximum gross mass（kg） 17000 Curb weight（kg） 10350/10700 Bulletin seats（seat） 18-32 Rated seats（person） 102/96 Wheel base（mm) 6100 Wheel track（mm） 2085/1860 Approaching angle/departure angle(°) 8/11 Suspension Air suspension Specification on tires 275/70R22.5 Energy storage system LiFePO4 battery/CATL Battery level 138.24kWh（576V 240Ah） Optional configuration AC, electric defroster, interior electronic service devices Maximum speed(km/h) 69
-
Specificationsclose
Dimensions(length/width/height)(mm) 10490x2482x3100/3250 Model of the driving motor lvkon Maximum gross mass（kg） 17000 Curb weight（kg） 10500/10900 Bulletin seats（seat） 20-32 Rated seats（person） 92/84 Wheel base（mm) 6100 Approaching angle/departure angle(°) 8/11 Suspension Air suspension Specification on tires 275/70R22.5 Optional configuration 空調、獨立水暖、公交服務設施 Maximum speed(km/h) 69
-
Specificationsclose
Dimensions(length/width/height)(mm) 10490x2482x3100/3250 Model of the driving motor lvkon Maximum gross mass（kg） 17000 Curb weight（kg） 10500/10900 Bulletin seats（seat） 92/84 Rated seats（person） 92/84 Wheel base（mm) 6100 Approaching angle/departure angle(°) 8/11 Suspension Air suspension Specification on tires 275/70R22.5 Optional configuration 空調、獨立水暖、公交服務設施 Maximum speed(km/h) 69
-
Specificationsclose
Dimensions(length/width/height)(mm) 10490x2482x3100/3250 Model of the driving motor Auto Ekontrol Maximum gross mass（kg） 17000 Curb weight（kg） 10500/10900 Bulletin seats（seat） 92/84 Rated seats（person） 92/84 Wheel base（mm) 6100 Approaching angle/departure angle(°) 8/11 Suspension Air suspension Specification on tires 275/70R22.5 Optional configuration 空調、獨立水暖、公交服務設施 Maximum speed(km/h) 69
-
Specificationsclose
Dimensions(length/width/height)(mm) 10500x2500x3070/3110/3260/3300 Model of the driving motor lvkon TZ410XS-LKM2504 Maximum gross mass（kg） 18000 Curb weight（kg） 10600/11000/11400 Rated seats（person） 78/18-39或97/18-39 Wheel base（mm) 5800 Approaching angle/departure angle(°) 9/11 Suspension 鋼板彈簧，氣簧 Specification on tires 275/70R22.5 Energy storage system LiFePO4 battery/CATL Optional configuration AC, electric defroster, interior electronic service devices Maximum speed(km/h) 69
-
Specificationsclose
Dimensions(length/width/height)(mm) 10500x2500x3070/3130/3230/3290 Model of the driving motor lvkon TZ410XS-LKM2504 Maximum gross mass（kg） 18000 Curb weight（kg） 10800/11200/11600 Rated seats（person） 78/18-39或97/18-39 Wheel base（mm) 5800 Approaching angle/departure angle(°) 9/11 Suspension 鋼板彈簧，氣簧 Specification on tires 275/70R22.5 Energy storage system LiFePO4 battery/CATL Optional configuration AC, electric defroster, interior electronic service devices Maximum speed(km/h) 69
