A front mounting bracket is installed on the front of the vehicle. With the snow shovel (required during snow cleaning operation) installed, front overhang: 1330mm, total vehicle length: 6690mm; With the snow roller brush (required during snow cleaning operation) installed, front overhang: 1520mm, total vehicle length: 7130mm; Side footboard, wheel rim and front grille are optional for installation. The maximum net power of the engine: 99 kW.
Specifications

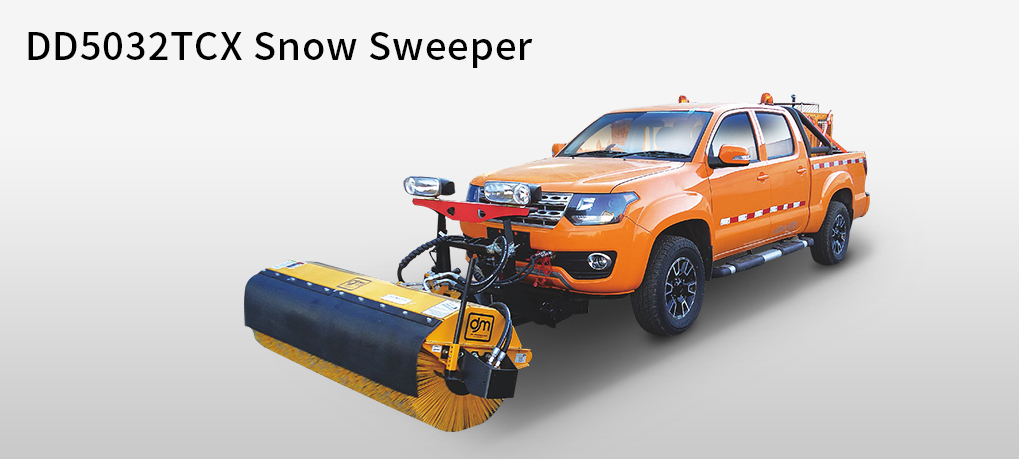

| Name | DD5032TCX Snowplow |
| Size: L?x?W?x?H（mm） | 7130,6690,5610x1840x1990 |
| Cargo compartment dimension(mm) | - |
| G.V.W.(kg)（kg） | 2735 |
| Curb mass(kg) | - |
| Rated loadkg) | - |
| Wheel base（mm） | 3405 |
| Number of axles | 2 |
| ABS | nothing |
| Approaching angle/ departure angle | 32/26 |
| Front?&?rear?overhang(mm) | 945/1260 |
| Maximum?speed（km/h） | 150 |
| Tire?number | 4 |
| The specification of tires | 245/65R17,265/65R17 |
| Front track | 1538,1548 |
| Rear track | 1538,1548 |
| Oil consumption rate(L/100Km) | - |
| Emission?standard | GB18352.5-2013 Guo V |
